Charnwood C5

The C-Five has a similar output to the C-Four but it is built with landscape proportions to take a slightly longer log length; 300mm (12”). The stove is fire brick lined and in certain situations, can be installed without the need for external air due to its rated output of 5kW. This stove meets the DEFRA requirements for smoke control exemption; allowing wood to be burnt in smoke control areas.

Description

Available Colours

Charnwood C5 Features

  • Cleanburn airwash technology
  • Drop down throat plate enabling the chimney to be swept through the stove
  • DEFRA exempt model available for burning wood in smoke control areas

Technical Overview

  • Energy Performance
  • Plate steel, cast iron, ceramic glass
  • Heat Output to Room – 5.0kW (range 2-5.5kW)
  • Efficiency – 75.7%
  • Flue Outlet – Top or rear 125mm (5″) diameter
  • CO Emissions – 0.19%
  • Maximum Log Length – 305mm (12 inches)
  • Weight: Store Stand – 104kg
  • Weight: Low Stand – 96kg

Options

  • Reciprocating drop in grate for burning solid fuels
  • Flu Boiler
  • Vertical Rear Flue Connector
  • Rear heatshield

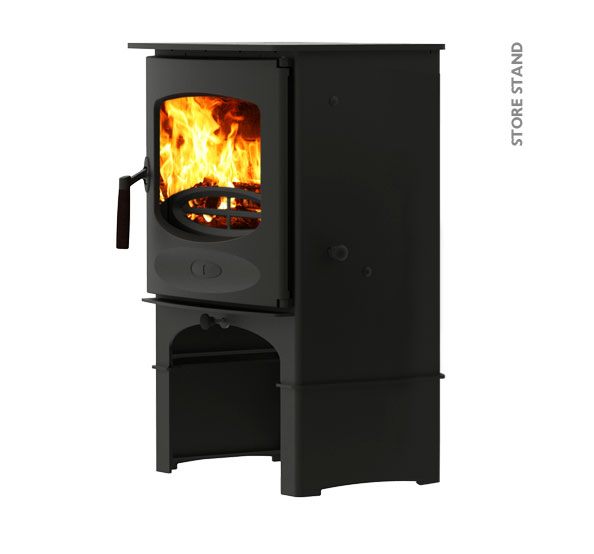

  • Store Stand
  • Choice of 8 colours
